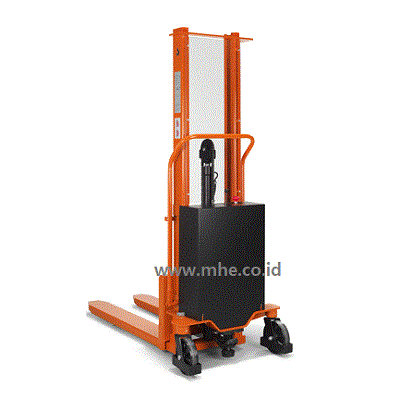

Toyota Power Stacker SHL080 | 0.8 ton
TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Power Stacker SHL080 | 0.8 ton
Specification unit Toyota Power Stacker SHL080 | 0.8 ton

Specifications

Manufacturer : Toyota
Manufacturer’s type designation : SHM080
Operator type : Hand

Load capacity/rated load Q(t) : 800 kg
centre distance c : 600 mm
distance, centre of drive axle to fork x : 740 mm
Wheelbase y : 1150 mm

Weight
Service weight : 255 kg
Axle load, with load, drive/castor/fork wheel : 150/390 kg
Axle load, without load, drive/castor/fork wheel : 40/95 kg

Wheels
Steer/fork wheels. Nylon (N) : N/N
Wheel size, front : Ø 200×50 mm
Wheel size, rear : Ø 75×75 mm

Wheels, number front/rear (x = driven wheels) 2/2
Track width, front b10 : 650 mm
Track width, rear b11 : 400 mm

Dimensions
Lift h3 : 1512 mm
Lift height h23 : 1600 mm
Height, mast extended h4 : 1990 mm
Tiller in drive position, min./max. h14 : 1290 mm, lowered h13 : 88 mm
Overall length I1 : 1675 mm
Length to face of forks l2 : 525 mm

Overall width b1 /b2 : 770 mm
Fork dimensions s/e/l : 55/160/1150 mm
Width over forks b5 : 540 mm

Ground clearance, centre of wheelbase m2 : 25 mm
Aisle width for pallets 800 x 1200 lenghtways Ast : 1810 mm
Turning radius Wa : 1150 mm

Performance
Lift speed with/without load : — 0,04/0,06 m/s
Lowering speed, with/without load m/s : Controlable
Parking brake : Manual

Electric motor
Lift motor rating at S3 15% : — 0.8 kW
Battery voltage, nominal capacity K5 : — 12/110 V/Ah

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.

The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances

comfort by offering easy horn operation while traveling in reverse
