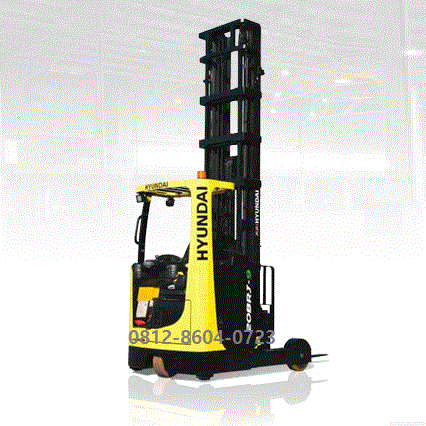

Hyundai Forklift 14BRJ-9 | 1.4 ton

TRIGUNA.ID support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hyundai Forklift 14BRJ-9 | 1.4 ton

Hyundai Forklift 14BRJ-9 | 1.4 ton, Specifications

Identification

Manufacturer Hyundai
Manufacturer’s model designation 14BRJ-9
Power supply(electric ,diesel,petrol,gas,manual) electric

Type of operation(hand,pedestrian,standing,seated,order-picker) seated
Load capacity / rated load Q (t) 1.4
Center distance c (mm) 600

Listance, center of drive axle(Loadwheel) to fork x(mm) 314
Wheelbase y(mm) 1410

Weight

Service weight (Incl. battery) kg 3166.
Axle loading, reach in, unloaded front(drive)/rear(load) 1,896 / 1,270.

Reach out, loaded front(drive)/rear(load) kg 602 / 3,964.
Reach in , loaded front(drive)/rear(load) kg 1,612 / 2,954.

Wheel Classis

Tires(solid rubber, superelastic, pneumatic, polyurethane) PE
Size, front<Drive>(Φ x width) 305×140.
rear<Load>(Φ x width) 285×100.

Wheels, numbers(x=driven wheels), front(drive)/rear(load) 1x/2.
Track width, front(drive) b10 (mm) 0.
Width, rear(load) b11 (mm) 1149.

Basic Dimensions

Mast/fork carriage tilt forward/backward degrees 2 / 5.
Lowered mast height h1 (mm) 2348.
Free lift (without backrest) h2 (mm) 1761.

Lift height h3 (mm) 5306.
Extended mast height (without backrest) h4 (mm) 5812.
Overhead load guard (cab) height h6 (mm) 2116.
Seat height/ standing height h7 (mm) 922.

Height of wheel arms h8 (mm) 303.
Overall length (Reach In, Fork End) l1 (mm) 2511
Length to face of forks ( Reach In) l2 (mm) 1311.

Overall width b1/b2 (mm) 1279 / 1270
Fork dimensions(hook type) s/e/l(mm) 40x100x1200
Fork carriage ISO 2328, class/type A,B 2A 2A.

Fork-carriage width b3 (mm) 800
Overall fork width b5 (mm) 732
Distance between support arms b4 (mm) 951.

Reach Sroke l4 (mm) 513
Ground clearance, loaded, under mast m1(mm) 91
Ground clearance, centre of wheelbase m2(mm) 56.

Aisle width for pallets 1000×1200 crossways Ast(mm) 2749
Aisle width for pallets 800×1200 lengthways Ast(mm) 2810.

Turning radius Wa(mm) 1638
Length across wheel arms l7(mm) 1790

Peformance Data

Travel speed, unloaded km/h 14
Lift speed, loaded/ unloaded m/s 0.37 / 0.58
Lowering speed, loaded/unloaded m/s 0.5 / 0.45.

Max. drawbar pull, loaded/ unloaded S2 5min N 580 / 610
Max. gradient performance, loaded/ unloaded S2 5min % 13 / 18
Service brake electric

E-Motor

Dirve motor rating S2 60min kW 7.5
Lift motor rating at S2 5min kW 14
Battery acc. to DIN 43531/ 35/ 36 A, B, C,no DIN43531.

Battery voltage, nominal capacity K5 V/Ah 48 / 300
weight(min) kg 750
dimensions L/W/H mm 1223 / 283 / 787

Other Details

Type of drive control AC Mosfet
Operating pressure for attachments bar 160.

Oil volume for attachments l/min 25
Sound level at driver’s ear according to DIN 12 053 db(A) 70
