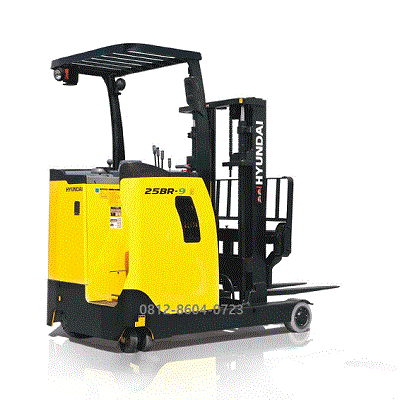

Hyundai Forklift 25BR-9 | 2.5 ton

TRIGUNA.ID support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Hyundai Forklift 25BR-9 | 2.5 ton

Hyundai Forklift 25BR-9 | 2.5 ton, Specifications

Manufacturer : Hyundai.
Manufacturer’s type 25BR-9
Drive type : Electric

Type of operation: standing
Load capacity / rated load kg 2500.
Center distance c mm 500.
Distance, center of drive axle to fork x mm 473 Wheelbase y mm 1,650.

WEIGHTS

Service weight(including battery) kg 3,815.
Axle loading, loaded front kg 5525.
Axoading, loaded rear kg 751.

Axle loading, unloaded front kg 1614.
Loading, unloaded rear kg 2201.

WHEELS, CHASSIS

Tires:solid rubber, superelastic, pneumatic, polyurethane Pneumatic .
Size, front 28X9-15-14PR.
Rear 6.00-9-10PR.

Wheels, number front x rear (x=driven wheels) 2×2.
Track width, front mm 1005.
Rear mm 980.

DIMENSIONS

Mast / fork carriage tilt forward / backward degrees 6 / 10 6 .
Lowered mast height h1 (mm) 2,040.
Free lift h2 (mm) 150.

Lift height h3 (mm) 3,005.
Extended mast height h4 (mm) 3,465.
Overhead load guard(cab) height h5 (mm) 2,170.

Seat height / standing height h7 (mm) 1,186.
Coupling height h10 (mm) 283.
Overall length l1 (mm) 3,685.

Length to face of forks l2 (mm) 2,635.
Overall width b1 (mm) 1,220.
Fork dimensions(hook type) lxexs (mm) 1,050x100x45.

Fork carriage ISO 2328, class / type A,B II / A III.
Fork-carriage width b3 (mm) 1,102.
Ground clearance, loaded, under mast m1 (mm) 145.

Ground clearance, centre of wheelbase m2 (mm) 189.
Aisle width for pallets 1,000×1,200 crossways(LxW) Ast (mm) 3,981.
Aisle width for pallets 800×1,200 lengthways(WxL) Ast (mm) 4,181.
Turning radius Wa (mm) 2,310.

PERFORMANCE DATA

Travel speed, unloaded km/h 16/15.5.
Lift speed, loaded/ unloaded mm/s 550/660.
Lowering speed, loaded/unloaded mm/s 580/460.

Max. Drawbar pull, loaded N 19,276.
Max. Gradeability, loaded % ( °) 29 25.
Service brake Drum brake Drum brake Drum brake Drum brake Drum brake Drum brake.

THER DETAILS

Operating pressure(system / attach) bar 210/160.
Attach oil volume ℓ30 (60 MAX.).
