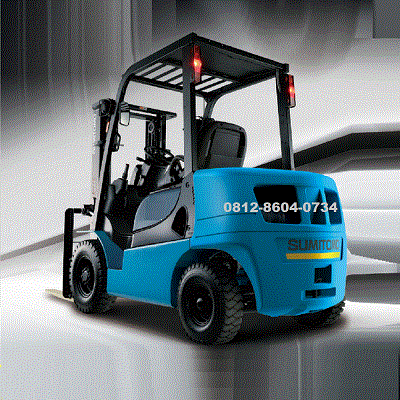

Sumitomo Forklift 03FL15AL | 1.5 ton
TRIGUNA.ID support penjualan unit, parts, service, rental, maintenance contract, overhaul, reconditioned Sumitomo Forklift 03FL15AL | 1.5 ton

Sumitomo Forklift 03FL15AL | 1.5 ton, Specifications

Characteristics

Engine : LPG
Transmission Model : Automatic
albeit Operator Position : Sit on Type
Load Capacity : 1500 Kg

Load Center C : 500 mm
also Alternative Capacity Q2 : 1350 mm
Load Distance X : 404 mm
Wheelbase Y : 1400 mm

Weight

Service Weight : 2550 mm
Axle Loading/Loaded/Front : 3530 kg
Loading/Loaded/Rear : 520 kg

Axle Loading/Unloaded/Front : 1035 kg
Axle Loading/Unloaded/Rear : 1515 kg

Dimensions

Tilting Angle α/β Forward/Backward degree : 6/10
accordingly Mast Height, Lowered h1 2-stage Mast : 1995 mm
Std Free Lift h2 2-stage std. Mast,From Ground : 140 mm
Std. Lift Height h3 2-stage Std. Mast,
From Ground : 3000 mm

MastHeight, Extended h4 2-stage. Mast : 3955 mm
above all Heigt, Overhead Guard h6 : 2070 mm
Length, with std. forks L1 : 3160 mm

Length, to forks Face L2 : 2240 mm
Width, at Tyre b1 Single : 1070 mm
Forks s/e/l Thicness x Width x Length : 35 x 100 x 920 mm

additionally Fork Carriage Class ISO 2328, Type A/B/no : Class 2,A mm
Width, Fork Carriage b2 : 970 mm
Ground Clereance m1 Under Mast : 120 mm

Ground Clereance m2 at Center of Wheelbase : 130 mm
Right Angle Stacking Aisle Ast with L1000x W800 Pallet : 3560 mm
Turning Radius Wa : 1955 mm

Performance

Travel Speed (FWD) Loaded 1st/2nd : 18.5 km/h
Travel Speed (FWD) Unloaded 1st/2nd : 19.0 km/h
Lifting Speed Loaded : 620 mm/s } | { Lifting Speed Unloaded : 670 mm/s

after all Lowering Speed Loaded : 500 mm/s
Lowering Speed Unloaded : 550 mm/s
Max. Drawbar Pull Loaded : 13 KN

Max. Gradeability Loaded % : 33 %
afterward Service Brake Operation/Control : Foot/Hydraulic
Parking Brake Operation/Control : Hand/Mechanical

Steering Type : FHPS
Battery Voltage/ Capacity at 5-hour rating V/ah : 12/64 Volt/ah

I.C Engine

Model type : 4TNE92
Displacement : 2659 m3
after that Rated output : 29/2050 kw/rpm
Max. Torque : 143/1400 nm/rpm
Fuel tank capacity : 52 liter

Tyre

size, front ( standard tread ) : 6.9-9-10PR
size, rear : 5.0-8-8PR

Dual tyre

Tread front ( dual tread ) : 1000 mm
Overall width : 1190 mm
Service weight ( dual tread ) :2690 kg
