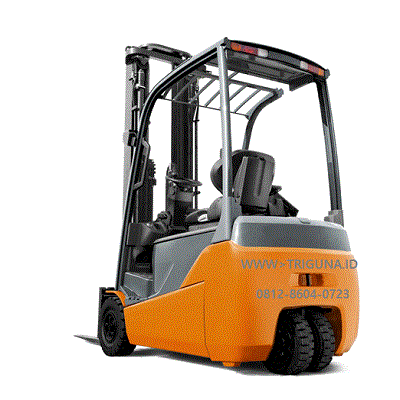

Toyota Forklift C3E200II | 2 ton

TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift C3E200II | 2 ton

Toyota Forklift C3E200II | 2 ton, Main Specification

Identification

Manufacturer : Toyota.
Model : C3E200II.
Drive : Electric.
Operator type : rider seated.
Load capacity/rated load Q : 2000 kg.
centre C : 500 mm.
distance, centre of drive axle to fork X : 330 mm.
Wheelbase Y : 984 mm.

Weight

Service weight : 2516 kg.
Axle load, with load, front/rear : 2965/551 kg.
Axle load, without load, front/rear : 1098/ 1418 kg.

Tyres

Tyre – pneumatic (P), pneumatic shaped cushion (SE), solid rubber (R) : SE.
size, front : 18×7-8.
rear : 18×7-8.
Wheels, number front/rear (x = driven wheels) : 2/1x.

Dimensions

Tilt of mast/fork carriage forward/backward a/b : 5/6 deg.
Height, mast lowered h1 : 2140 mm.
Free lift h2 : 80 mm.
Lift h3 : 3270 mm.
Lift height h23 : 3305 mm.
Height, mast extended h4 : 3820 mm.
Height of overhead guard (cab) h6 : 2055 mm.
Seat height h7 : 1032 mm.
Coupling height h10 : 621 mm.
Overall length L1 : 2359 mm.
Length to face of forks L2 : 1559 mm.
Overall width b1 : 990 mm.
Fork dimensions s/e/l : 35x100x800 mm.
Fork carriage DIN 15 173, class/type A, B : IIA.
Fork-carriage width b3 : 920 mm.
Ground clearance, with load, below mast m1 : 90 mm.
Ground clearance, centre of wheelbase m2 : 91.5 mm.
Aisle width for pallets 1000×1200 crossways Ast : 2888 mm.
Aisle width for pallets 800×1200 lengthways Ast : 3010 mm.
Turning radius Wa : 1229 mm.
Internal turning radius b13 : 0 mm.

Performance Data

Travel speed, with/without load : 12.0/12.5 km.
Lift speed, with/without load : 0.34/0.52 m/s.
Lowering speed, with/without load : 0.59/0.50 m/s.
Drawbar pull, with/without load : 1470/1670 N.
Max. drawbar pull, with/without load : 7400/7600 N.
Gradeability, with/without load : 8/12 %.
Max. gradeability, with/without load : 17/25 %.
Acceleration time, with/without load : 5.8/5.2 s.
Service brake : Hydraulic.

Electric Motor

Drive motor rating S2 60 min : 6 kw.
Lift motor rating S3 15% : 11 kw.
Battery acc. to DIN 43 531/35/36 A, B, C, no : DIN 43535 A.
voltage, nominal capacity K5 : 24/420-500 V/Ah.
weight : 372 kg.
Energy consumption acc. to EN16796:2016 : 2.2 kWh/h.

Other

Type of drive control : inverter MOSFET.
Operating pressure for attachments : 130/160 bar.
Oil volume for attachments : – l/min.
Sound level at the driver’s ear according to EN 12 053 : 62,4 dB(A).

The Mastery of True Potential

In this paragraph, Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

Secondly, The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

however, Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Thirdly, Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

most importantly, Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention. Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach. You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

Moreover, A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

In conclusion, The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift. An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
