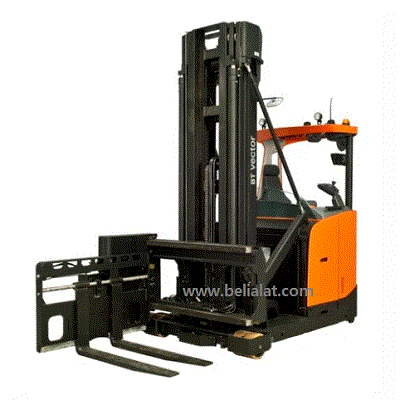

Toyota Forklift VRE125 | 1.2 ton
TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Forklift VRE125 | 1.2 ton
Specification unit Toyota Forklift VRE125 | 1.2 ton

Specifications

Manufacturer : Toyota Very Narrow Aisle (VNA)
Model : VRE125
Drive : Electric

Operator type : Seated
Load capacity/rated load Q : 1250 kg
Load centre C : 600 mm

Wheelbase y : 1655 mm
Service weight without battery : 6150* kg
Axle load, with load, drive/support arm wheel : 3825/4725 kg
Axle load, without load, drive/support arm wheel : 4410/3135 kg

Wheels

Drive/support arm wheel : Vulkollan
Wheel size, front : Ø 300×100 mm
Wheel size, rear : Ø 350×128 mm

Wheels, number front/rear (x = driven wheels) : 4/2x 4/2x Track width, front b10 : 1008/1158 mm
Track width, rear b11 : 1010 mm

Dimensions

Height, mast lowered h1 : 4405* mm
Lift movement h3 : 5730* mm
Total lift height h23 : 7800* mm

Height, mast extended h4 : 8511* mm
Height of overhead guard (cabin) h6 : 2544 mm
cabin inside h21 : 2060 mm

cabin sides h22 : 900 mm
Carpet thickness : 17,5 mm
Step-in height h7 : 412 mm

Additional lift h9 : 1990/2590 mm
Platform height, elevated h12 : 6150* mm
Height of lowered forks h13 : 80 mm

Height of auxilary lift mast h15 : 2781/3381 mm
Overall length l1 : 3846 mm
Length to face of forks l2 : 3616 mm

Chassis width, rear b1 : 1270 mm
Chassis width, front b2 : 1270/1420 mm
Cabin width b24 : 1220-1670 mm

Fork dimensions s mm 40/45 ,e mm 120/125, l mm 600-1800
Width over forks b5 : min 380, max 793 mm
Ground clearance, with load, below mast m1 : 60 mm Turning radius WA : 1698 mm

Distance front axle to boom pivot l8 : 830-1080 mm
Entrance width, min/max l24 : 398 mm

Performance data
Travel speed, with/without load : 9,0/9,0 km/h
Lift speed, with/without load : 0,40/0,45 m/s
Lowering speed, with/without load : 0,40/0,40 m/s

Service brake Electric

Parking brake Electro-mechanical Electro-mechanical Electro-mechanical Electro-mechanical Electric motor
Drive motor rating S2 60 min : 2×5,5 kW
Lift motor rating S3 25% : 14,5 kW

Battery voltage, nominal capacity K5 : 48/930 V/Ah
Battery weight : 1300 kg

Other

Type of drive control : Variable AC

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.

The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances

comfort by offering easy horn operation while traveling in reverse
