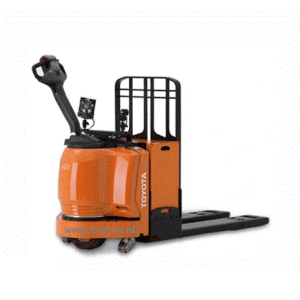

Toyota Pallet Mover LWE200 | 2 ton
TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Pallet Mover LWE200 | 2 ton
Specification unit Toyota Pallet Mover LWE200 | 2 ton

Specifications

Identification
Manufacturer : Toyota
Model : LWE200

Drive Electric
Operator type Stand on/pedestrian
Load capacity/rated load Q : 2000 kg
centre c : 600 mm

distance, centre of support arm wheel to face of fork, fork raised/lowered x mm 913/957
Wheelbase, fork raised/lowered y mm 1362/1406*

Weight

Service weight with battery kg 718
Axle load, with load, drive/castor/fork wheel kg 466/585/1667
Axle load, without load, drive/castor/fork wheel kg 284/294/140

Wheels

Drive/castor/fork wheel Polyurethane
Wheel size, front mm Ø 230×70
Wheel size, rear mm Ø 85×95 Ø

Additional wheels (dimensions) mm Ø 125×50*
Wheels, number front/rear (x = driven wheels) 1x+ 2 or 4/2
Track width, front b10 mm 500
Track width, rear b11 mm 370

Dimensions

Lift h3 mm 120 1)
Lift height h23 mm 205 1)
Stand height h7 mm 190

Height of tiller in drive position, min./max. Manual steering h14 mm 1100/1413 Power steering, highest setting h14 mm 1201/1413 Power steering, lowest setting h14 mm 1101/1313
Height, fork lowered h13 mm 85

Overall length l1 mm 1816*
Length to face of forks l2 mm 666*
Overall width b1 mm 730

Fork dimensions s/e/l mm 78/180/1150*
Width over forks b5 mm 550*
Ground clearance, centre of wheelbase m1 mm 30

Aisle width for pallets 1000×1200 crossways Ast mm 2430*
Aisle width for pallets 800×1200 lengthways Ast mm 2277*
Turning radius, fork raised Wa mm 1585*

Performance data

Travel speed, with/without load Manual steering km/h 6,0/6,0 (Power steering km/h 6,0/6,0)
Lift speed, with/without load m/s 0,05/0,08

Lowering speed, with/without load m/s 0,11/0,09
Max. gradeability, with/without load 2) % 8/18
Acceleration time (over 10 m) s 5,7
Service brake

Electromagnetic Electric motor

Drive motor rating S2 60 min kW 1,8
Lift motor rating at S3 10% kW 2,2
Battery voltage/nominal capacity K5 V/Ah 24/300*

Battery weight kg 241
Energy consumption acc. to VDI cycle kWh/h 0.39

Others

Type of drive control Variable AC Variable AC Variable AC Variable AC Variable AC Variable AC 8.4 Sound level at the driver’s ear according to EN 12 053 dB(A) 60

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter.

Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention.

Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach.

You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse.

The seat also swivels to the left to make it easier to enter and exit the forklift.

An optionally available rear-pillar assist grip with a horn button enhances

comfort by offering easy horn operation while traveling in reverse
