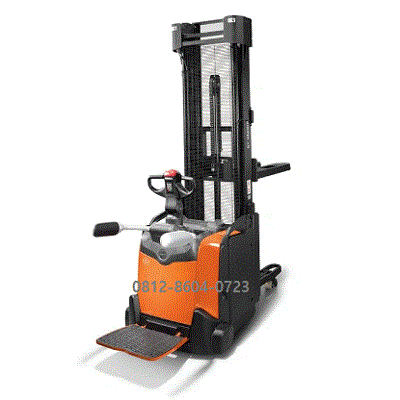

Toyota Power Stacker SPE160L | 1.6 ton

TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Power Stacker SPE160L | 1.6 ton

Specification unit Toyota Power Stacker SPE160L | 1.6 ton

Identification

Manufacturer : Toyota.
Model : SPE160L
Drive : Electric.
Operator type : Seated.
Load capacity/rated load Q : 1600 kg.
centre c : 600 mm.
Load distance (support arms raised/lowered) : 659/690 mm.
Wheelbase (support arms raised/lowered) y : 1508/1539 mm.

Weight

Service weight with battery : 1637 kg.
Axle load, with load, drive/castor/support arm wheel :  571/521/2097 kg
Axle load, without load, drive/castor/support arm wheel : 621/397/563 kg

Wheels

Drive/castor/fork wheel : Polyurethane*
Wheel size, front : Ø 250×92 mm.
Wheel size, rear : Ø 85×74 mm.
Additional wheel size : ø140×86 mm
Wheels, number front/rear (X = driven wheels) : 2(1X) / 4.

Dimensions

Tilt of fork, forward/backward : a/b deg -2°/4°
Height, mast lowered h1 : 2182 mm
Free lift h2 : 1550 mm

Lift h3 : 4745 mm
Lift height h23 : 4800 mm
Height, mast extended h4 : 5432 mm

Height of overhead guard (cab) h6 : 2153 mm
Seat height h7 : 1075 mm
Height of support arms h8 : 245 mm

Height of lowered forks h13 : 55 mm
Overall length l1 : 2364 mm
Length to face of forks l2 : 1214 mm

Overall width b1 : 1270 mm
Fork dimensions s/e/l mm 40/100/1150*
Fork carriage ISO 2328, class/type A, B : II A

Fork-carriage width b3 : 850 mm
Width over forks b5 : 250-738 mm
Distance between support arms b4 : 900 mm

Reach distance l4 : 613 mm
Ground clearance, with load, below mast m1 : 70 mm
Ground clearance, centre of wheelbase 1) m2 : 70 mm

Aisle width for pallets 1000 x 1200 crossways Ast : 2706 mm
Aisle width for pallets 800 x 1200 lengthways Ast : 2749 mm
Turning radius Wa mm 1668 1668 1668 4.37 Length across support arms l7 : 1828 mm

Performance data

Travel speed, with/without load : 10,0/10,0** km/h.
Lift speed, with/without load : 0,31/0,43 m/s.
Lowering speed, with/without load : 0,49/0,52 m/s.

Reach speed, with/without load : 0,20/0,20 m/s.
Max. gradeability, with/without load 1) : 15/18 %.
Service brake : Electric.

Electric motor

Drive motor rating S2 60 min : 5,0 kw.
Lift motor rating S3 15% : 10,0 kw.
Battery voltage, nominal capacity K5 : 48/310* V/Ah.
Battery weight kg 552* 719* 903* 6.6 Energy consumption acc to VDI cycle : 2,99 kWh/h.

Other

Type of drive control : Variable AC.
Sound level at the driver’s ear according to EN 12 053 : dB(A) 70.

The Mastery of True Potential

Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention. Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach. You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, before mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift. An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
