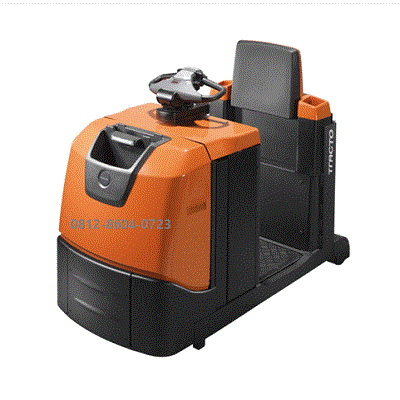

Toyota Towing Tractor TSE500 | 5 ton

TRIGUNA.ID support unit, parts, service, rental, maintenance contract, overhaul, reconditioned Toyota Towing Tractor TSE500 | 5 ton

Main Specification, Toyota Towing Tractor TSE500 | 5 ton

Identification
Manufacturer : Toyota
Model : TSE500
Drive : Electric
Operator type : Stand on
Load capacity/rated load Q : 5000 kg
Rated drawbar pull F : 1000 N
Wheelbase y : 1319 mm

Weight
Service weight without battery : 659 kg
Axle load, without load, drive/support arm wheels : 679/390 kg

Wheels
Drive/support arm wheels : Polyurethane
Wheel size, front : Ø 250×92 mm
Wheel size, rear : Ø 140×70 mm

Dimensions
Overall height h15 : 1284 mm
Stand height h7 : 130 mm
Coupling height towing pin h10 : 188/283/378/473 mm
Coupling height towing ball h10 : 253/393/533 mm
Overall length L1 : 1571 mm
Overall width b1 /b2 : 790/799 mm
Distance between support arms b4 : 613 mm
Ground clearance, centre of wheelbase m1 /m2 : 63/71 mm
Turning radius Wa : 1508 mm
Clear width driver compartment entrance L24 : 450 mm

Performace Data
Travel speed, with/without load : 7.5/12.0 km/h
Max. drawbar pull, with/without load : 3200 N
Gradeability, with/without load : 6/13 %
Service brake : Electric

Electric Motor
Drive motor rating S2 60 min : 2.8 kw
Battery voltage, nominal capacity K5 : 24/465-620 V/Ah
Battery weight, min./max. : 463/538 kg
Energy consumption acc to VDI cycle 1) kWh/h

Other
Type of drive control : BT Powerdrive
Sound level at the driver’s ear according to EN 12 053 : 66

The Mastery of True Potential

however, Mastery of any undertaking can only be achieved if there is true potential and unwavering dedication to excellence. To Toyota, the 8 Series is the proud culmination of 50 years in the pursuit of mastery in the development and manufacture of forklifts.

Outstanding Comfort and Visibility

The 8 Series provides the comfort and visibility for long hours of efficient operation.

Efficiency-Boosting Operability

The operator’s compartment is carefully designed to ensure maximum forklift control from minimum operator effort.

Top-Class Stability

Thirdly, Toyota’s System of Active Stability (SAS), Operator Presence Sensing (OPS) system and Travel and Load Handling Control provide innovative, high-tech stability to the 8 Series.

Environmental Friendliness

Low noise and exhaust emissions make the 8 Series environmentally friendly.

Built-in Reliability and Serviceability

Designed to be tough and easy to maintain.

True Potential Through Outstanding Comfort and Visibility

In this paragraph, Comfort is a Toyota tradition. With the 8 Series, it starts from the time you enter. Grab the large assist grip, place your foot on the wide, low step and slide into the operator’s seat that provides comfort, support and retention. Once you have been seated and wrapped your hands around the small- diameter steering wheel you will intuitively feel that everything you need for operating the forklift is within natural reach. You will also instantly realize that you have a clear view of the forks and load. This comfort sets the stage for reaching the true potential of the forklift from Toyota.

Easy Entry and Exit

Firstly, A large assist grip, A deep, wide step and a spacious opening team up for easy entry onto the forklift.

Comfort and Support ORS* Seat

Secondly, The ORS seat can be adjusted 150 mm forward and backward to provide comfort and support to almost all sizes of operators. *ORS: Operator Restraint System.

Outstanding Visibility

The overhead guard, mast and instrument panel have been designed to provide excellent visibility of the fork tips at the most frequently used lift heights.

Wide Floor Space

The spacious floor area enables a more relaxed operating position that contributes to comfort.

True Potential Through Outstanding Operability

most importantly, Toyota used the latest technology to reexamine forklift operation in its search for enhanced operability. Motion-capture technology monitored every aspect of operator movement looking for ways to make operation more efficient. Based on these findings, well-thought-out design changes were combined to make the 8 Series ready to transform every action of the operator into smooth and efficient operation.

Operator-Friendly Steering Wheel

The small-diameter steering wheel teams up with the full hydraulic power steering system to provide excellent maneuverability. The steering column offers step-less adjustment to accommodate a wide range of operator preferences. Bagian bagian componet forklift terdiri dari Mesin, Transmisi, roda depan, roda belakang, rem, hydraulic, steer, mast dll

Foot-Activated Parking Brake (Powershift models)

In conclusion, The operator simply depresses the parking brake pedal to set it without changing operating position. A conveniently located handle is used to release it.

Rear-Pillar Assist Grip / Swivel Seat

Moreover, The seat swivels to the right to facilitate operation in reverse. The seat also swivels to the left to make it easier to enter and exit the forklift. An optionally available rear-pillar assist grip with a horn button enhances comfort by offering easy horn operation while traveling in reverse
